What are the features of JET Dispenser?
We have compiled answers to frequently asked questions. Please use it to solve basic information about Dispenser and questions about products and services.
For questions not listed below or more detailed inquiries, please feel free to contact us from this website.
What are the features of JET Dispenser?
There are mainly 5 features.
1. When applying, Z-axis descent is not required, and tact can be shortened

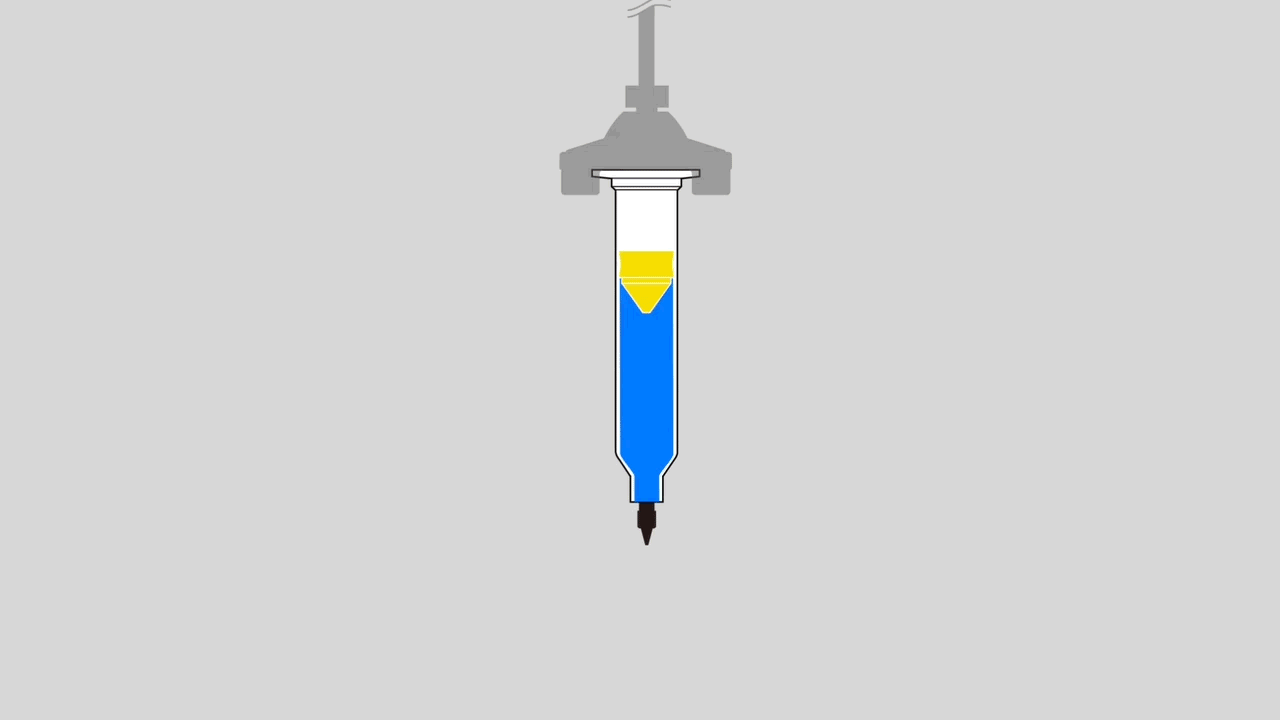

Air pulse method (contact type)

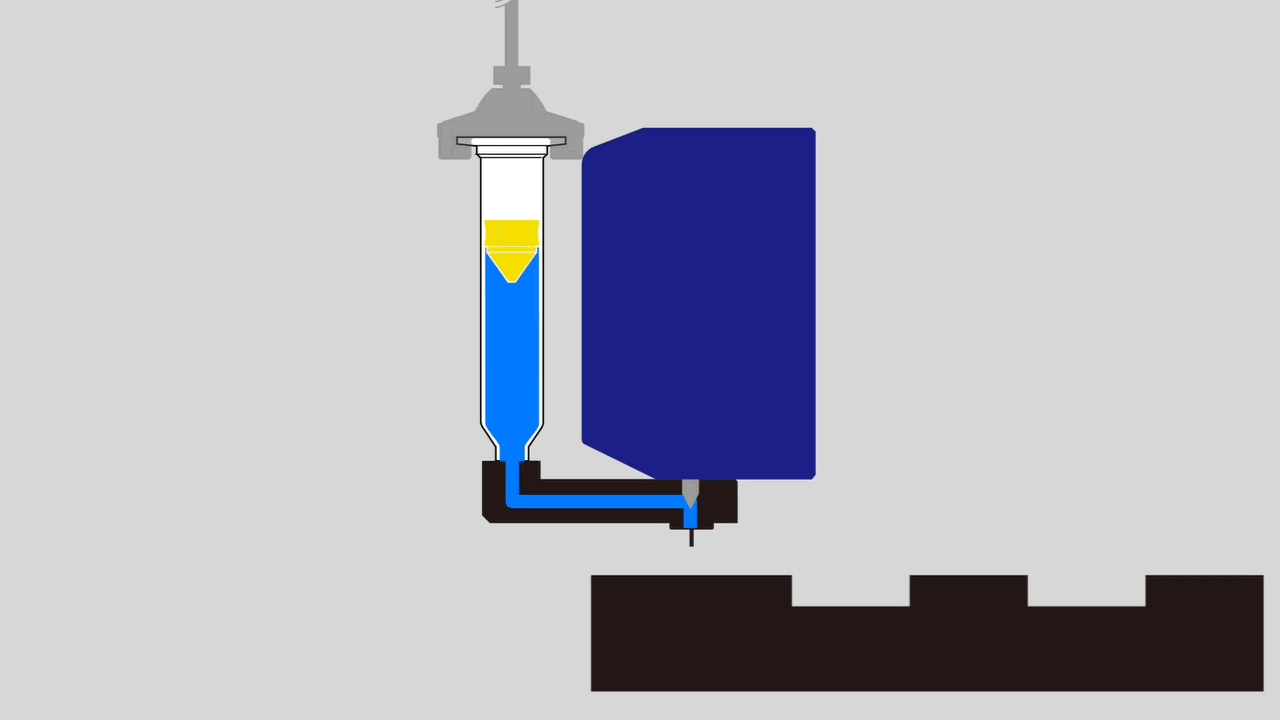

JET method

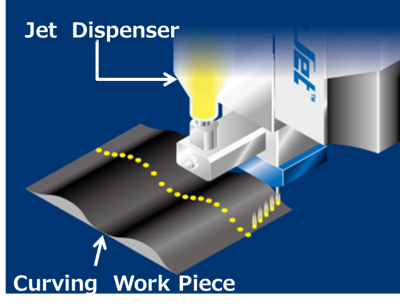

2. Not affected by workpiece distortion or warpage
Example: Application to resin molded products

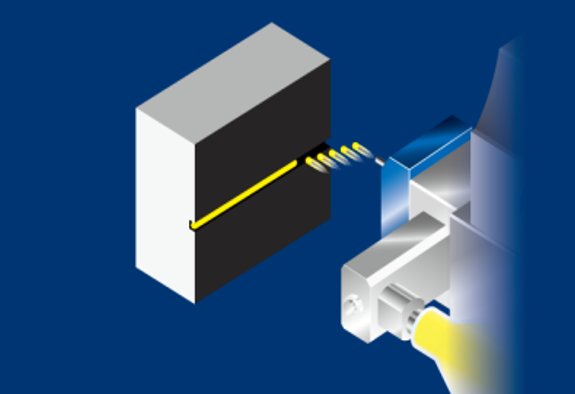

3. Can be applied from lower, horizontal and diagonal directions
4. Can be applied to narrow pitches without Nozzle

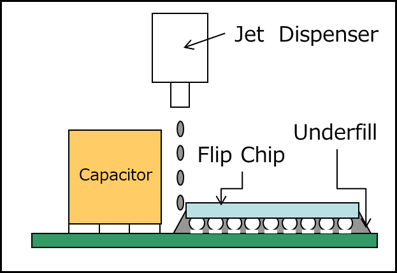

Example) Underfill
5. No damage to workpieces (such as wires) due to contact with Nozzle
Example) potting
Dispenser of Musashi Engineering
Musashi Engineering handles various JET method Dispenser according to customer's needs.
