Full Function Digital Control Dispenser <br/> SuperΣCMⅣ Pro

Full Function Digital Control Dispenser
SuperΣCMⅣ Pro

TOP ＞ Dispenser ＞ Air pulse method ＞ Full Function Digital Control Dispenser
SuperΣCMⅣ Pro

/products/dispenser/airpulse-dispenser Full Function Digital Control Dispenser
SuperΣCMⅣ Pro

Pursue the ultimate productivity

Equipped with independent AIR OUT unit and temperature controller.

Full Function Digital Control Dispenser <br/> Image of SuperΣCMIV Pro -1

In addition to traditional features, ΣCMIV is even more powerful!

Point

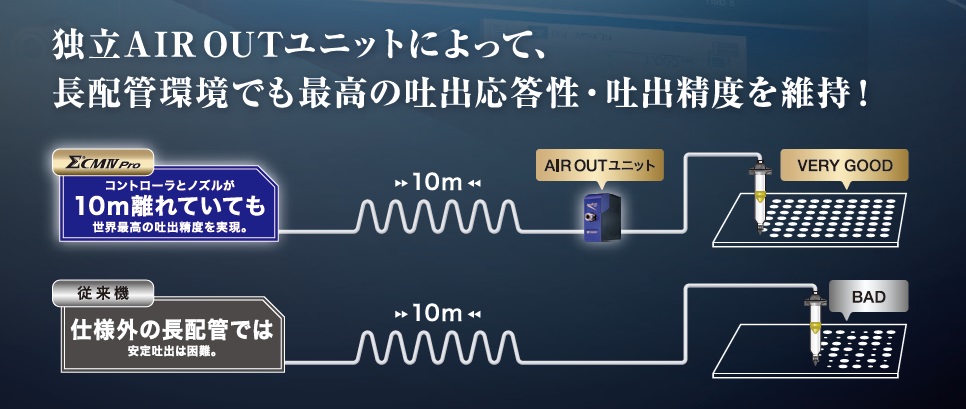

■The independent AIR OUT unit maintains the highest discharge responsiveness and discharge accuracy even in long piping environments!
■Equipped with a temperature controller. Since both heating and cooling of the syringe can be performed, fluctuations in the amount of application due to rising liquid temperature can be suppressed.

Column Σ 3 major functions that solve the problem of applicationlink icon

Column Strengths of Real-Time Monitoring Functionlink icon

Examples of introduction Jetting of liquid metallink icon

Examples of introduction 3D Alignment and following Dispensinglink icon


Catalog DL ※Login registration is required

Commentary Video

SPECIFICATION Outline Specification

Name
Full-function digital control Dispenser SuperΣCMIV Pro
Model
S-SIGMA-CM4P -CTR-V7-N
S-SIGMA-CM4P -CTR-V7-P
S-SIGMA-CM4P -CTR-V2-N
S-SIGMA-CM4P -CTR-V2-P
S-SIGMA-CM4P -CTR-V05-N
S-SIGMA-CM4P -CTR-V05-P
Spill pressure setting range
When Σ function is ON
30.0 ～ 700.0 [kPa]
20.0 ～ 200.0 [kPa]
5.0 ～ 50.0 [kPa]
Spill pressure setting range
When Σ function is OFF
20.0 ～ 700.0 [kPa]
5.0 ～ 200.0 [kPa]
0.5 ～ 50.0 [kPa]
Output time setting range
When Σ function is ON
Timed mode: 0.020 to 9999.999[s] (depending on tube length)
Manual mode: 0.035 ～ 9999.999 [s]
Output time setting range
When Σ function is OFF
0.001 ～ 9999.999 [s]
Discharge mode
Timed mode, manual mode
Vacuum pressure setting range
0.00～ -５.00 [kPa]
Main Functions
Automatic waterhead difference correction, automatic liquid leakage prevention, automatic residual volume warning, alpha correction, delta correction, residual volume display correction, vacuum pressure correction, discharge counter, stopwatch, interval discharge, discharge condition correction, autoclear, autoclear, autoclear, express shot, date and time, operation history, discharge pressure monitoring, self-diagnosis, ECO mode (*), sleep mode, I/O function allocation, password lock, display unit switching (kPa/bar), solenoid valve error, air pressure error, vacuum pressure error, copy, auto tuning, auto tuning
Signal specification
NPN
PNP
NPN
PNP
NPN
PNP
Number of channels
400CH

※ S-SIGMA-CM4P-CTR-V05-(N/P) does not support ECO mode (equivalent to ECO mode OFF).

Independent AIR OUT unit
